Tilley AL21, typ 3, cztery nogi, nafta 350cp, rok 1950-60, type 3
Wielki Duńczyk Offline
Senior Member
****
Liczba postów: 334
103
Dołączył: Oct 2014
Reputacja: 3
#1
20-10-2014, 16:15 (Ten post był ostatnio modyfikowany: 17-07-2019, 00:05 {2} przez Wielki Duńczyk.)
Tilley AL21 comes in atleast 4 versions.
1. type has a pressure-release-screw on top left side of the handle, opposite the pump. It also has a fixed controlcock-unit and is therefor made either to the right (type 1B) or to the left side (type 1A) - but fixed controlcock-unit. It is a 3-legged.
2. type is a 3-legged wihtout a pressure-release-screw and the controlcock-unit is possible to dismount and remount to the right or left side, like all the rest types.
3. type is like this lamp. It has 4 legs and has short wide air-ventilation-tubes sticking out from the burner-unit.
4. type is like type 3 but with the air-ventilationscrews sticking more out and they are much smaller in diameter - plus they have a mesh/web on the end.

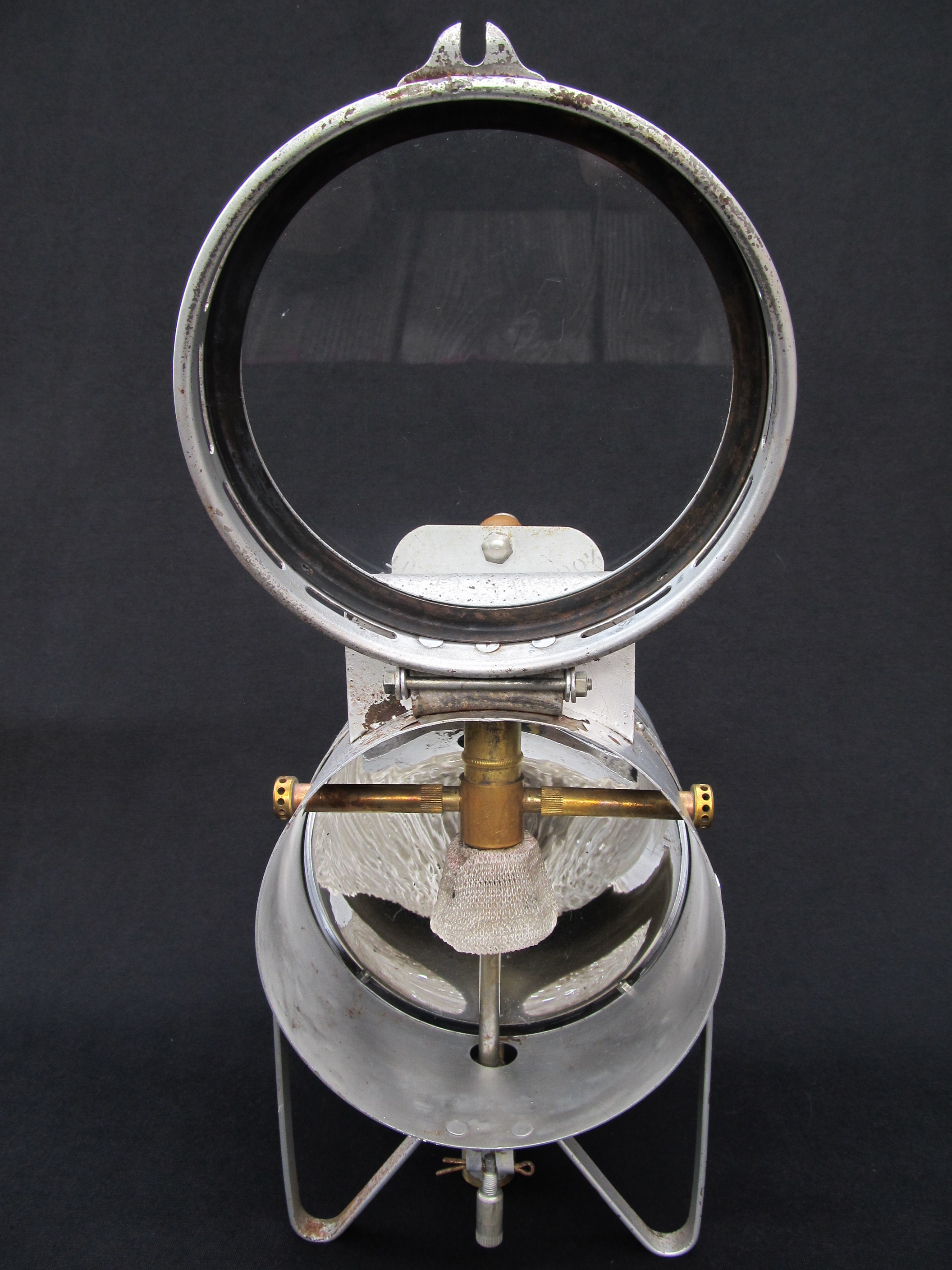

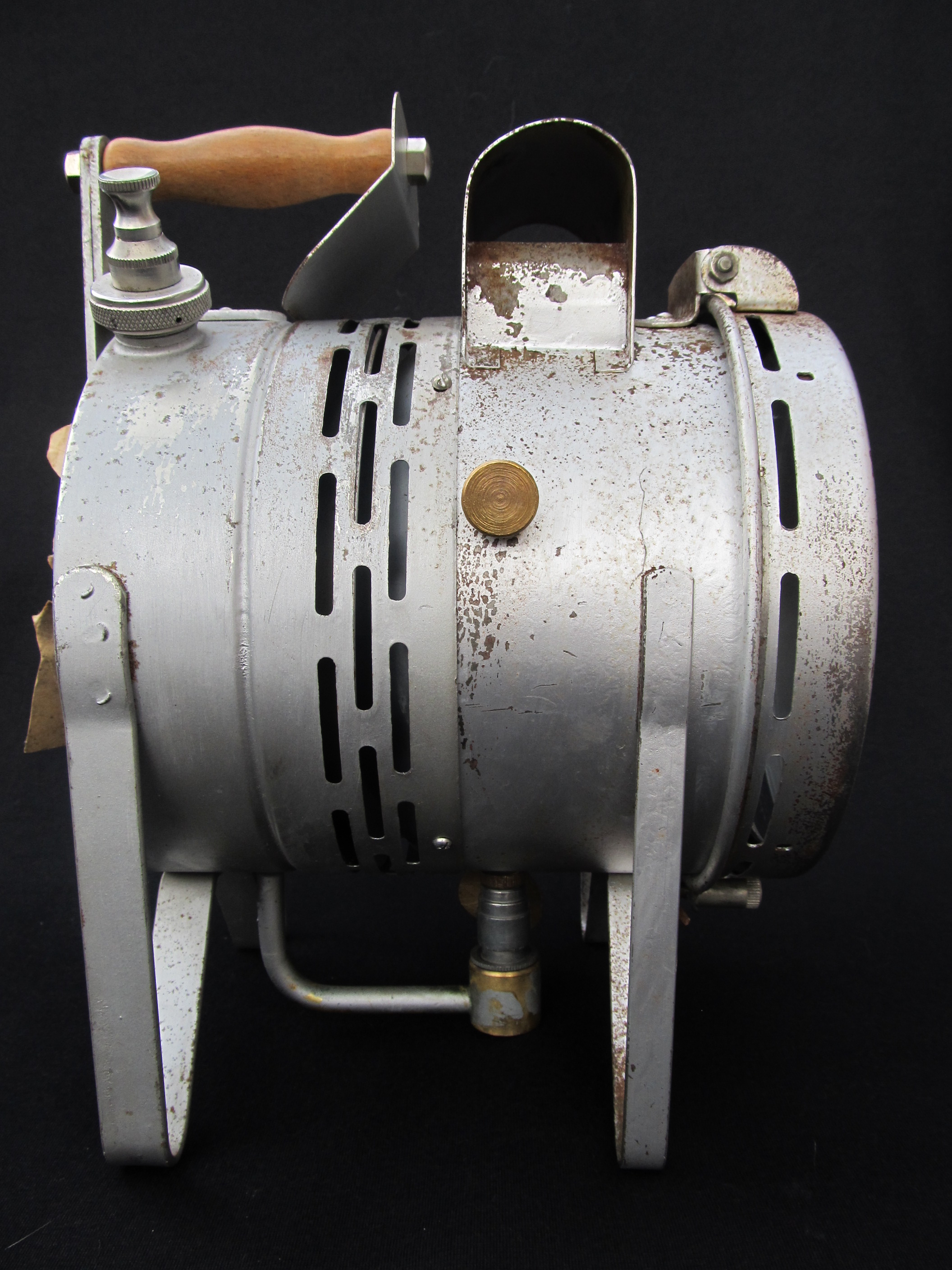

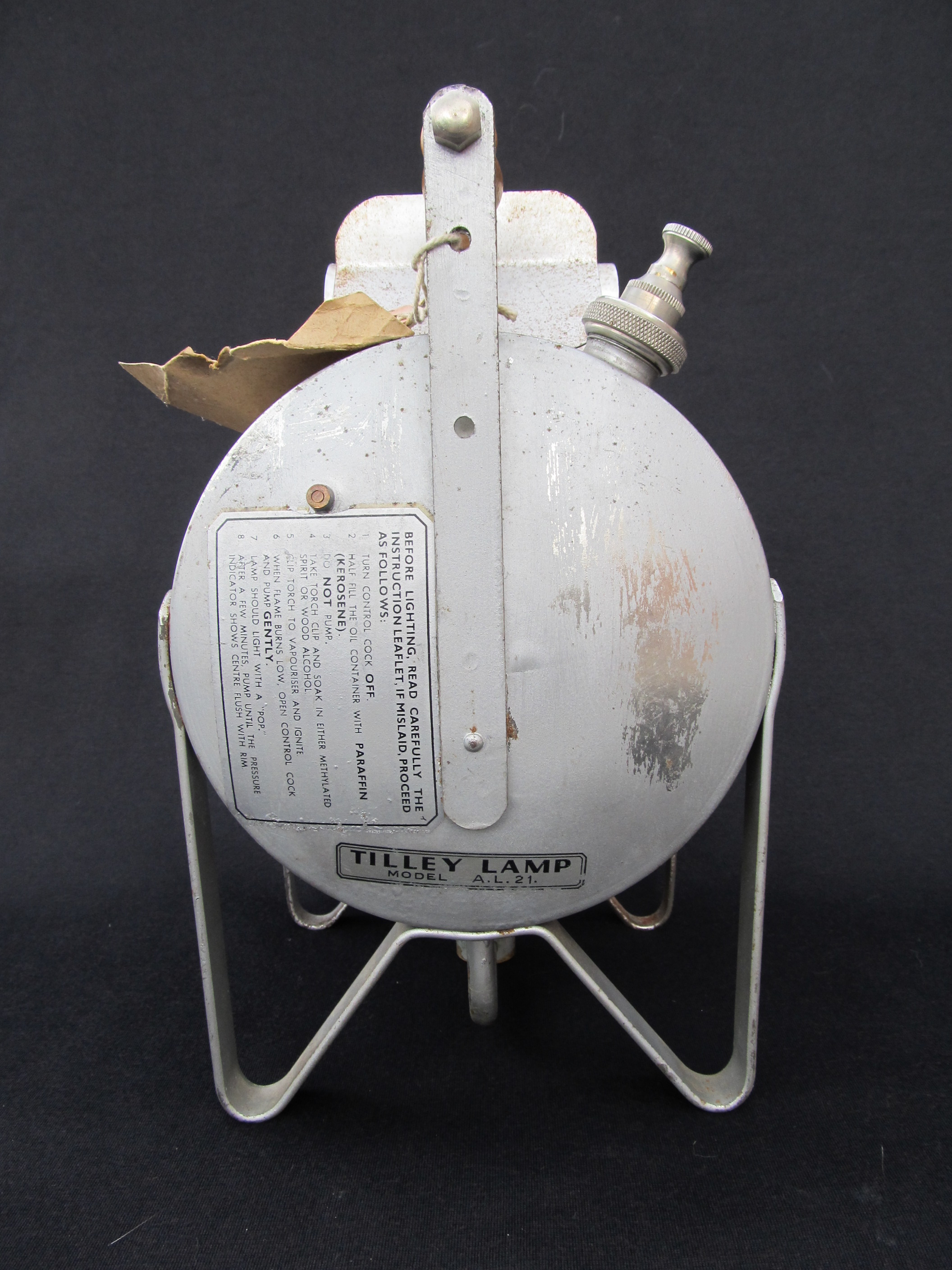

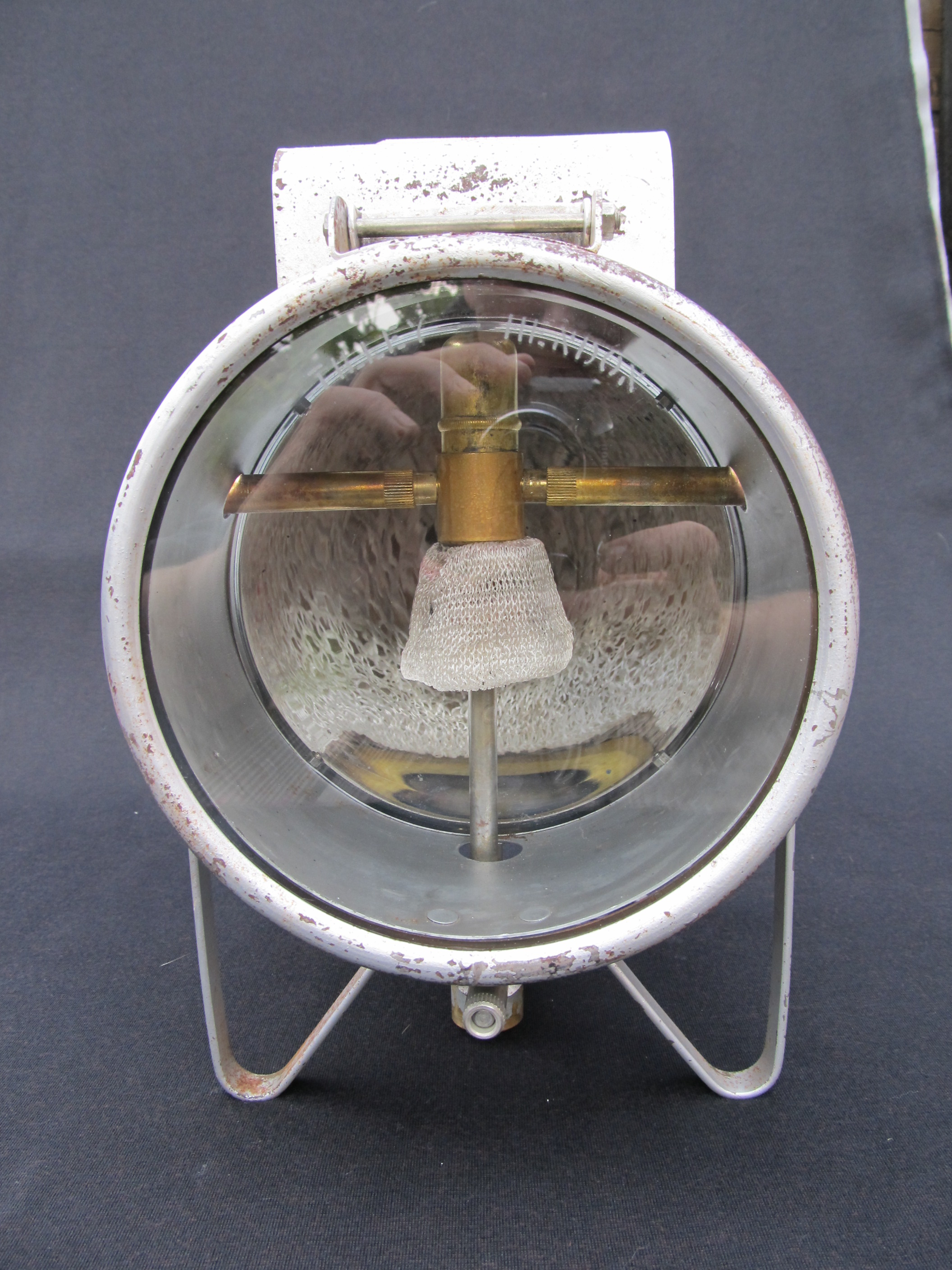

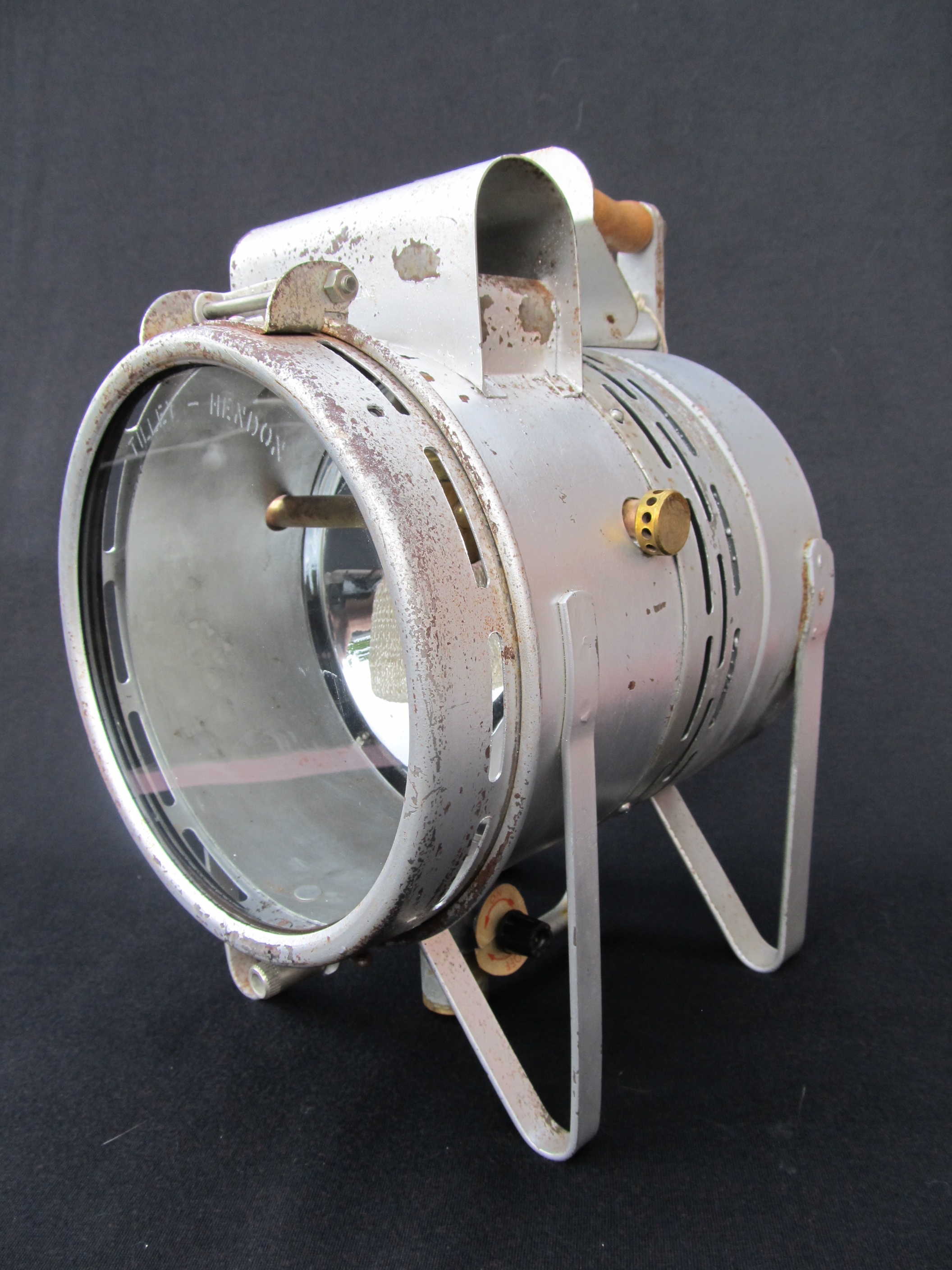

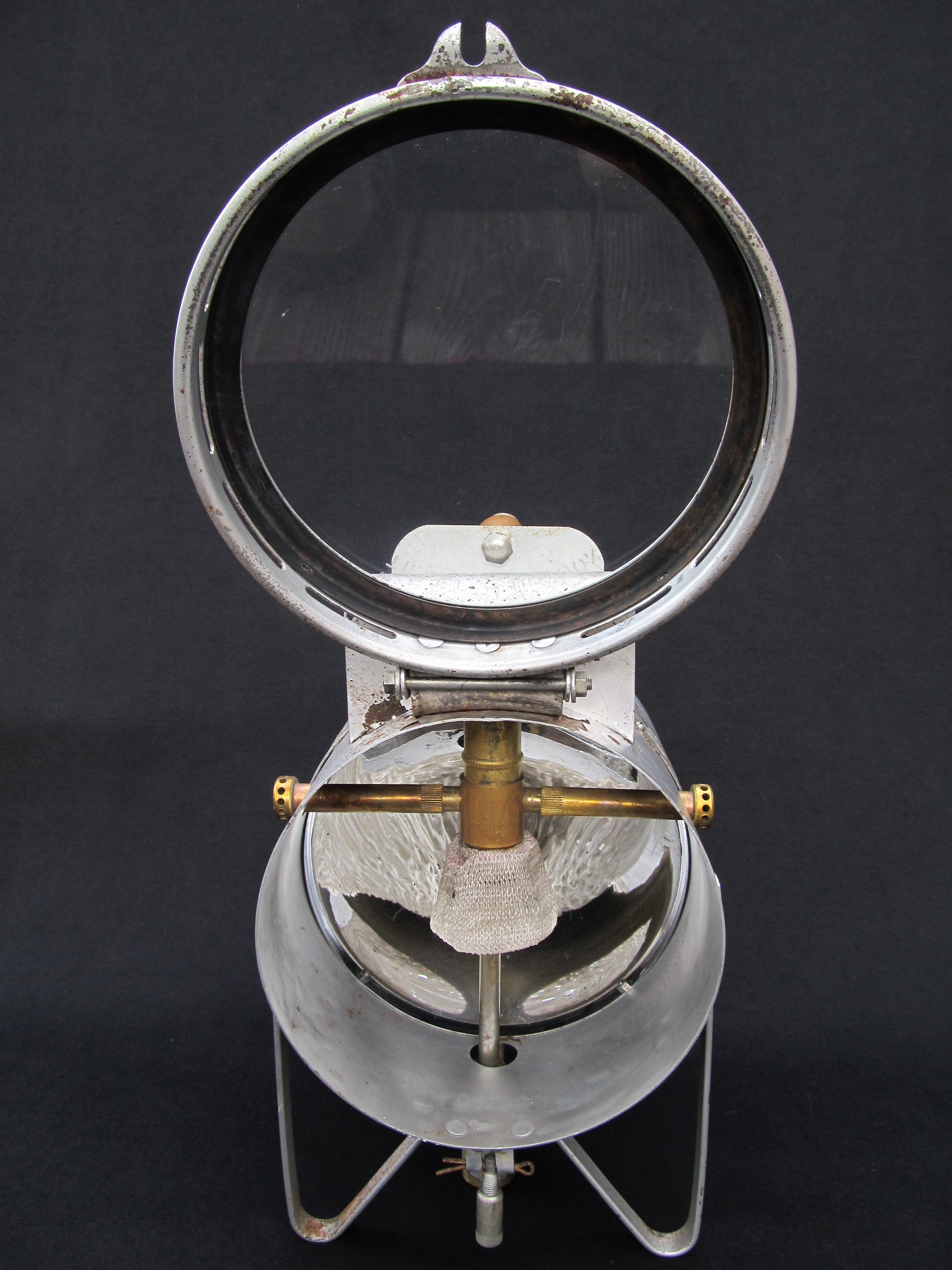

This lamp under here were used by the KTAS, Copenhagen Telephone Stock Company as a emergencylight. It was never used until I got it.
I really like the Tilley AL21, there is just something about it Smile
Ciesz

Mikołaj


Załączone pliki Miniatury
Tilley AL21, typ 3, cztery nogi, nafta 350cp, rok 1950-60, type 3 Tilley AL21, typ 3, cztery nogi, nafta 350cp, rok 1950-60, type 3 Tilley AL21, typ 3, cztery nogi, nafta 350cp, rok 1950-60, type 3 Tilley AL21, typ 3, cztery nogi, nafta 350cp, rok 1950-60, type 3 Tilley AL21, typ 3, cztery nogi, nafta 350cp, rok 1950-60, type 3
